Sharpening system for saw blades, router bites and more.

SPECIFICATIONS:

Maximum Shaper Cutter Diameter.............6”
Bore Size of Cutter.....…1/2", 3/4”, 1", 1-1/4"
Grinding Wheel Diameter………….....…...6”
Grinding Wheel Bore.…………...........1-1/4"
Slider ..............linear bearing sliding system
Motor .........3/4HP / 120V / 60Hz / 5.0 A
Motor Speed.............. 1800 to 3600 R.P.M.
Weight……….....……..................... 62 LBS.
Shipping Weight……….....…....….. 90 LBS.
Overall Dimensions ....18"L x 18"W x 18""H
1 Year Warranty

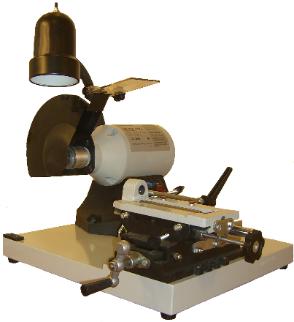

US55009 US-550 PRO sharpener with shaper cutter attachment

_______________________________

US-550 PRO Universal Sharpener	US55010	1
6" diamond grinding wheel 400 grit 1/16 diamond thick	US55020	1
Bushing of 6" wheel (OD 1-1/4" - ID 5/8")	US55029	1
Cleaning stick	US55032	1
Shaper cutter attachment	US55017	1
Training video	US55040	1
Safety rules		1

US55010

US55020

US55040

US55017

US55032

Everything on this table is included in the US-550 shaper cutter sharpener US55009.

This machine sharpens various sizes and shapes of carbide shaper cutters. You will
have everything you need to grind carbide shaper cutters. Easy to understand training
video included.
